Description

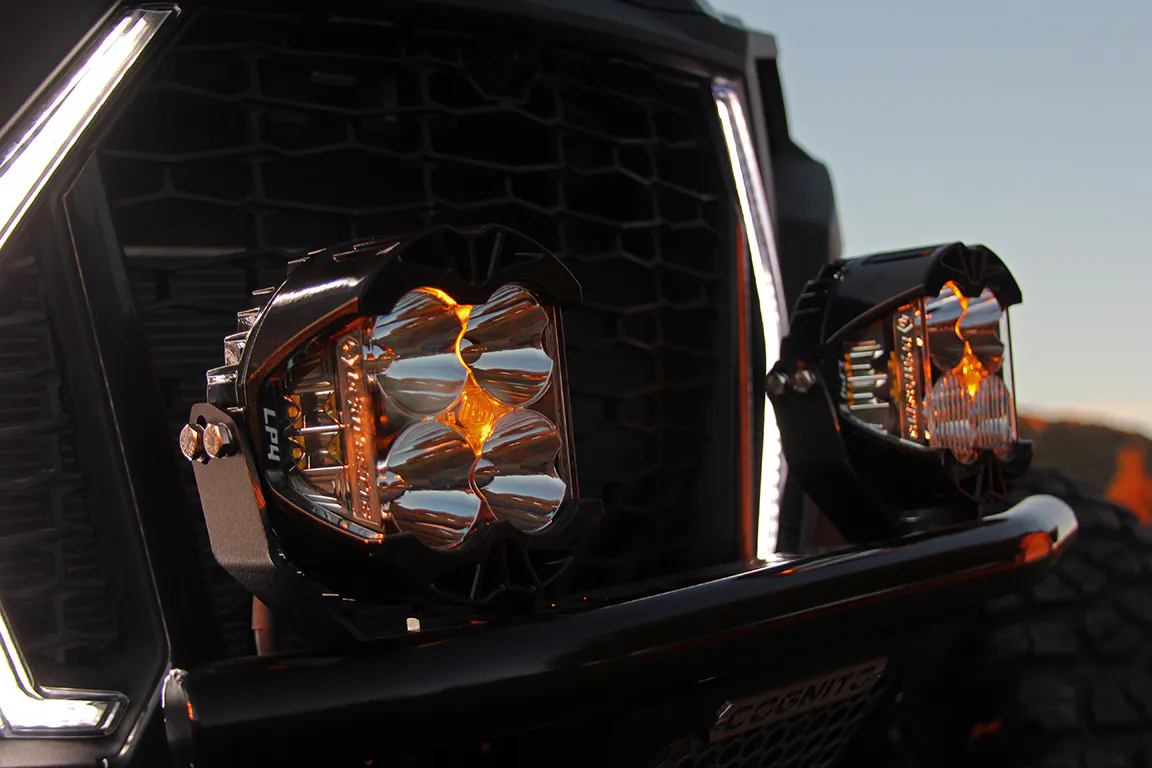

LP4 Pro LED Light Pod Pair (Driving/Combo; Baja Amber)
The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200 degree spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting’courtesy of’our patented Integrated Peripheral Technology (IPT). To keep your light’performing’at its’highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel’through’the front of the housing,’over the rear heat sinks’-‘drastically improving cooling capacity and performance.’With an amber day-time running light, the LP4 will fulfill all your lighting needs.
The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200 degree spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting’courtesy of’our patented Integrated Peripheral Technology (IPT). To keep your light’performing’at its’highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel’through’the front of the housing,’over the rear heat sinks’-‘drastically improving cooling capacity and performance.’With an amber day-time running light, the LP4 will fulfill all your lighting needs.
- Satisfaction Guarantee -30-Day Money Back Guarantee
- Limited Lifetime Warranty -Complete Purchase Protection
- uService -Replaceable Lenses And Optics
- ClearView -All The Light, Right Where You Need It
- MoistureBlock -Waterproof, Rain Proof, Submersible
- CopperDrive -Only LED Driven At 100 Percent
- 5000K Daylight -Less Driver Fatigue, Natural Color
Information:
Two Light Pods, Wiring HarnessApplication Summary:
Universal| Attributes | |
| Add-On | Accessories-298001-Rock Guard (Black), Accessories-298002-Rock Guard (Amber), Accessories-298002-Rock Guard (Amber), Accessories-298003-Rock Guard (Clear), Accessories-668713-Lens Kit (Driving/Combo; Amber), Accessories-668703-Lens Kit (Driving/Combo; Clear), Accessories-668701-Lens Kit (Spot; Clear), Associated Products-660302-Anti Theft Hardware Kit – 1/4-20×1/2 Socket Pin Head Bolts, Associated Products-660303-Anti Theft Hardware Kit – 3/8 in. Tamperproof Nuts, Compatible Products-640176-Backlit Add-On Harness, Compatible Products-640168-Controller Module Harness, Compatible Products-640175-Splitter Harness (2-Light Max), Compatible Products-640189-Splitter Harness (4-Light Max), Compatible Products-640188-Upfitter Harness (Single Light) |
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight | Amber |
| Backlight Amperage Rating (A) | 0.35 |
| Backlight Wattage (W) | 4.83 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8857 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Color | Baja Amber |
| Country of Origin (Primary) | US |
| Depth (in.) | 3.2 |
| Description | Driving/Combo; Amber; Pair |
| Effective Lighting Score (ELS) | 6474 / (7.0, 136 degree) / 395 |
| GTIN | 00810031743339 |
| Harmonized Tariff Code (Schedule B) | 8512906000 |
| Hazardous Material Code | N |
| Height (in.) | 5.1 |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Length (in.) | 5.1 |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Life Cycle Status Code | Available to Order |
| Light Pattern | Driving/Combo |
| Light Quantity | 2 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| NAFTA Preference Criterion Code | B |
| Overvoltage Protection | Built-In |
| Product Fitment | Universal |
| Product Information | Two Light Pods, Wiring Harness |
| Product Type | LP4 Pro LED Light Pod Pair w/ Wiring Harness |
| SDR Required Flag | N |
| Secondary Amperage Rating (A) | 1.0 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Weight (lbs.) | 2.8 |
| Wiring Harness Included | Yes |
