Description

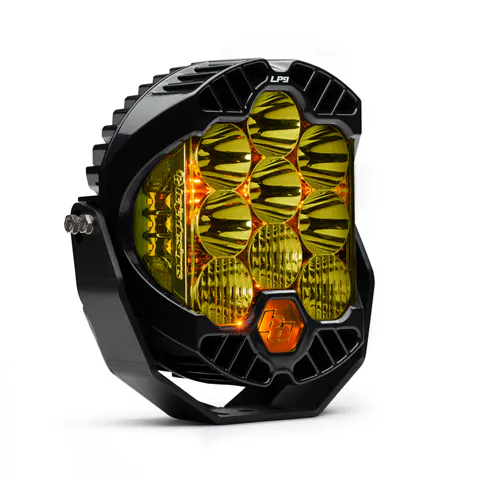

LP9 Pro LED Light Pod (Driving/Combo; Baja Amber)
A design that was inspired by Baja Designs’ legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light. The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs. Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
A design that was inspired by Baja Designs’ legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light. The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs. Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
- Satisfaction Guarantee -30-Day Money Back Guarantee
- Limited Lifetime Warranty -Complete Purchase Protection
- uService -Replaceable Lenses And Optics
- ClearView -All The Light, Right Where You Need It
- MoistureBlock -Waterproof, Rain Proof, Submersible
- CopperDrive -Only LED Driven At 100 Percent
- 5000K Daylight -Less Driver Fatigue, Natural Color
Information:
One Light PodApplication Summary:
Universal| Attributes | |
| Add-On | Accessories-328001-Rock Guard (Black), Accessories-328002-Rock Guard (Amber), Accessories-328003-Rock Guard (Clear), Accessories-668613-Lens Kit (Driving/Combo; Amber), Accessories-668603-Lens Kit (Driving/Combo; Clear), Accessories-668611-Lens Kit (Spot; Amber), Accessories-668611-Lens Kit (Spot; Amber), Accessories-668601-Lens Kit (Spot; Clear), Associated Products-660302-Anti Theft Hardware Kit – 1/4-20×1/2 Socket Pin Head Bolts, Associated Products-660303-Anti Theft Hardware Kit – 3/8 in. Tamperproof Nuts, Compatible Products-640176-Backlit Add-On Harness, Compatible Products-640168-Controller Module Harness, Compatible Products-640172-Splitter Harness (2-Light Max), Compatible Products-640167-Upfitter Lock Out Harness |
| Amperage Rating (A) | 9 |
| Average Rated Life (hr.) | 49,930 |
| Backlight | Amber |
| Backlight Amperage Rating (A) | 0.2 |
| Backlight Wattage (W) | 2.8 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 12547 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Color | Baja Amber |
| Country of Origin (Primary) | US |
| Depth (in.) | 3.25 |
| Description | Driving/Combo; Amber |
| Effective Lighting Score (ELS) | 9757 / (6.8, 142 degree) / 665 |
| GTIN | 00819314026633 |
| Harmonized Tariff Code (Schedule B) | 8512906000 |
| Hazardous Material Code | N |
| Height (in.) | 8 |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Length (in.) | 8 |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Life Cycle Status Code | Available to Order |
| Light Pattern | Driving/Combo |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity | 9 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| NAFTA Preference Criterion Code | B |
| Overvoltage Protection | Built-In |
| Patent No. | 5,504,603 |
| Product Fitment | Universal |
| Product Information | One Light Pod |
| Product Type | LP9 Pro LED Light Pod |
| SDR Required Flag | N |
| Secondary Amperage Rating (A) | 1.52 |
| Secondary Brightness (Lumens) | 2302 |
| Secondary Light Quantity | 6 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 21 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 124.200 |
| Weight (lbs.) | 6.5 |
| Wiring Harness Included | No |
