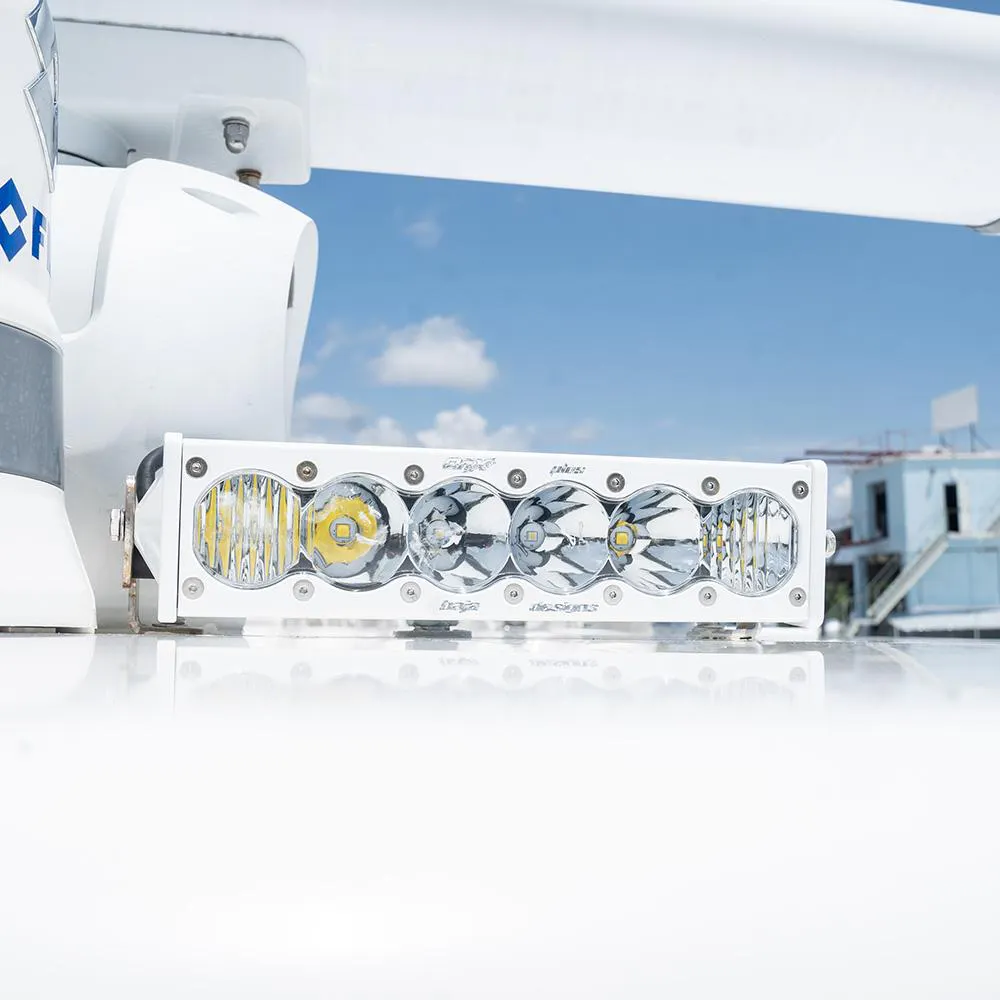

OnX6+ White Straight LED Light Bar (10 Inch; Driving/Combo; Clear)
The OnX6+ white LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
The OnX6+ white LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
- NOTE: This light does NOT include a harnessTo access the High/low light function the applicable wiring harness is 640119. *640115 On/Off OnX6+ wiring harness is only applicable for 10-20in. OnX6+. *640119 OnX6+ wiring harness is applicabl
Information:
One Light BarApplication Summary:
Universal| Attributes | |
| Amperage Rating (A) | 7.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 10,817 (High); 9,230 (Low) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Color | Clear |
| Country of Origin (Primary) | US |
| Depth (in.) | 4.290 |
| Description | Straight; Driving/Combo; Clear |
| GTIN | 00819314028354 |
| Harmonized Tariff Code (Schedule B) | 8541402000 |
| Hazardous Material Code | N |
| Height (in.) | 2.690 |
| Housing Color | White |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 10 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Life Cycle Status Code | Available to Order |
| Light Pattern | Driving/Combo |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| NAFTA Preference Criterion Code | B |
| Overvoltage Protection | Built-In |
| Product Fitment | Universal |
| Product Information | One Light Bar |
| Product Type | OnX6+ 10 Inch LED Light Bar |
| Size | 10 Inch |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 106.260 |
| Weight (lbs.) | 4.250 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
