Description

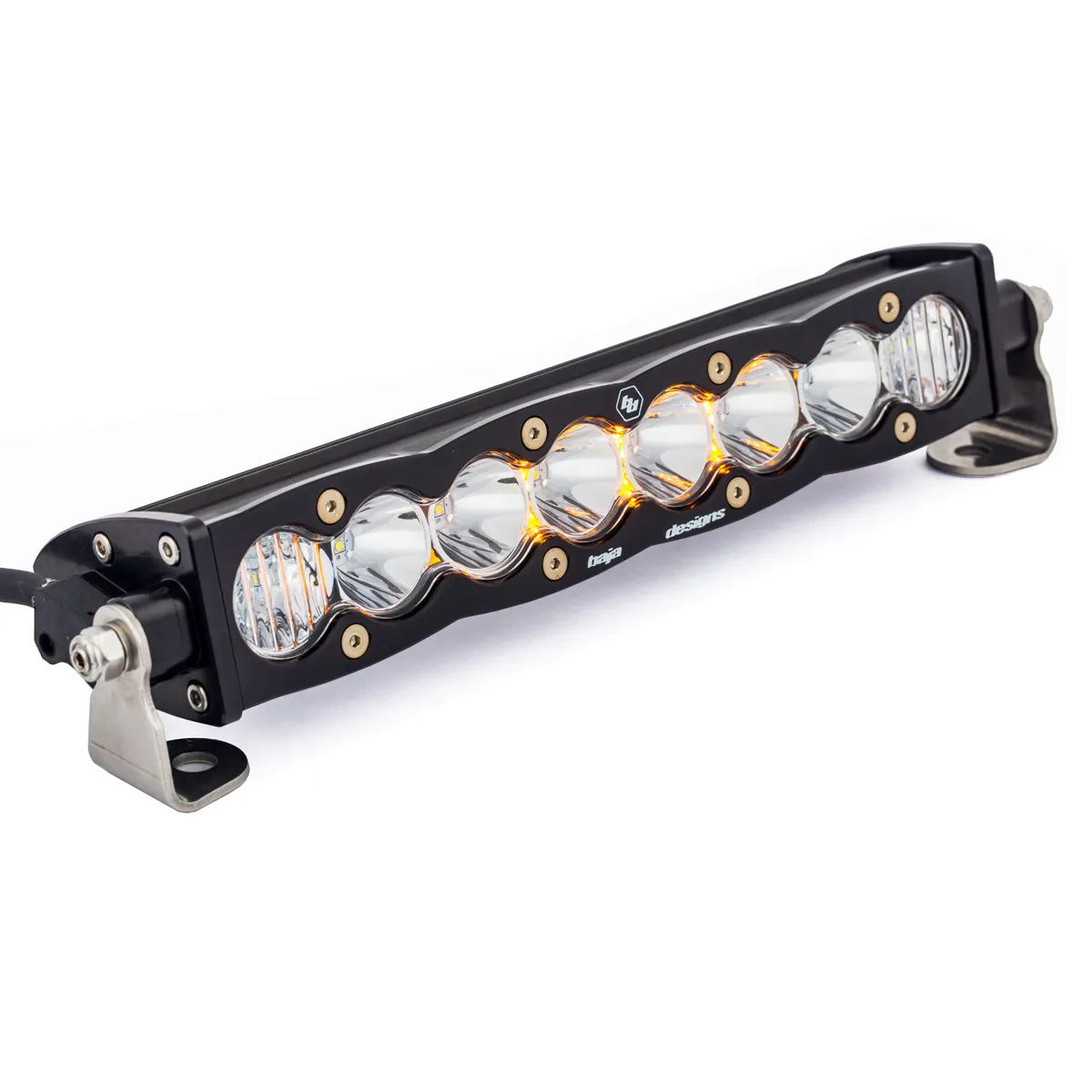

S8 Straight LED Light Bar (10 Inch; Driving/Combo; Clear)
Baja Designs’ latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 6,350 lumens of pure power, low amp draw of 4.00 amps, and nearly 50,000 hours of LED life. The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design. The S8 is backed by our 30 Day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!
Baja Designs’ latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 6,350 lumens of pure power, low amp draw of 4.00 amps, and nearly 50,000 hours of LED life. The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design. The S8 is backed by our 30 Day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!
- Satisfaction Guarantee -30-Day Money Back Guarantee
- Limited Lifetime Warranty -Complete Purchase Protection
- uService -Replaceable Lenses And Optics
- ClearView -All The Light, Right Where You Need It
- MoistureBlock -Waterproof, Rain Proof, Submersible
- CopperDrive -Only LED Driven At 100 Percent
- 5000K Daylight -Less Driver Fatigue, Natural Color
Information:
One Light BarApplication Summary:
Universal| Attributes | |
| Add-On | Accessories-708201-Rock Guard (Black), Accessories-708202-Light Cover (Amber), Accessories-708203-Light Cover (Clear), Accessories-708313-Lens Kit (Driving/Combo; Amber), Accessories-708303-Lens Kit (Driving/Combo; Clear), Accessories-708301-Lens Kit (Spot; Clear), Accessories-708314-Lens Kit (Wide Cornering; Amber), Accessories-708304-Lens Kit (Wide Cornering; Clear), Associated Products-660302-Anti Theft Hardware Kit – 1/4-20×1/2 Socket Pin Head Bolts, Associated Products-660303-Anti Theft Hardware Kit – 3/8 in. Tamperproof Nuts, Compatible Products-640177-Backlit Add-On, Compatible Products-613608-Harness Splitter, Compatible Products-613609-Harness/Splitter (55 Inch), Compatible Products-640115-Wiring Harness (On/Off), Compatible Products-640163-Harness/Splitter (Hi Beam), Compatible Products-640094-Upfitter Harness, Compatible Products-640122-Wiring Harness (Mode Switch) |
| Amperage Rating (A) | 4.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 6324 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Color | Clear |
| Country of Origin (Primary) | US |
| Depth (in.) | 3 |
| Description | Driving/Combo; Clear |
| Effective Lighting Score (ELS) | 4893 / (6.5, 116 degree) / 323 |
| GTIN | 00852156007224 |
| Harmonized Tariff Code (Schedule B) | 8512906000 |
| Hazardous Material Code | N |
| Height (in.) | 1.6 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 10 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Life Cycle Status Code | Available to Order |
| Light Pattern | Driving/Combo |
| Light Quantity | 1 |
| Lighting Modes | Beam/Amber Backlit Feature |
| Lighting Quantity | 8 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| NAFTA Preference Criterion Code | B |
| Overvoltage Protection | Built-In |
| Patent No. | D780,964 |
| Product Fitment | Universal |
| Product Information | One Light Bar |
| Product Type | S8 10 Inch LED Light Bar |
| SDR Required Flag | N |
| Size | 10 Inch |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 57.960 |
| Weight (lbs.) | 2.4 |
| Wiring Harness Included | No |
