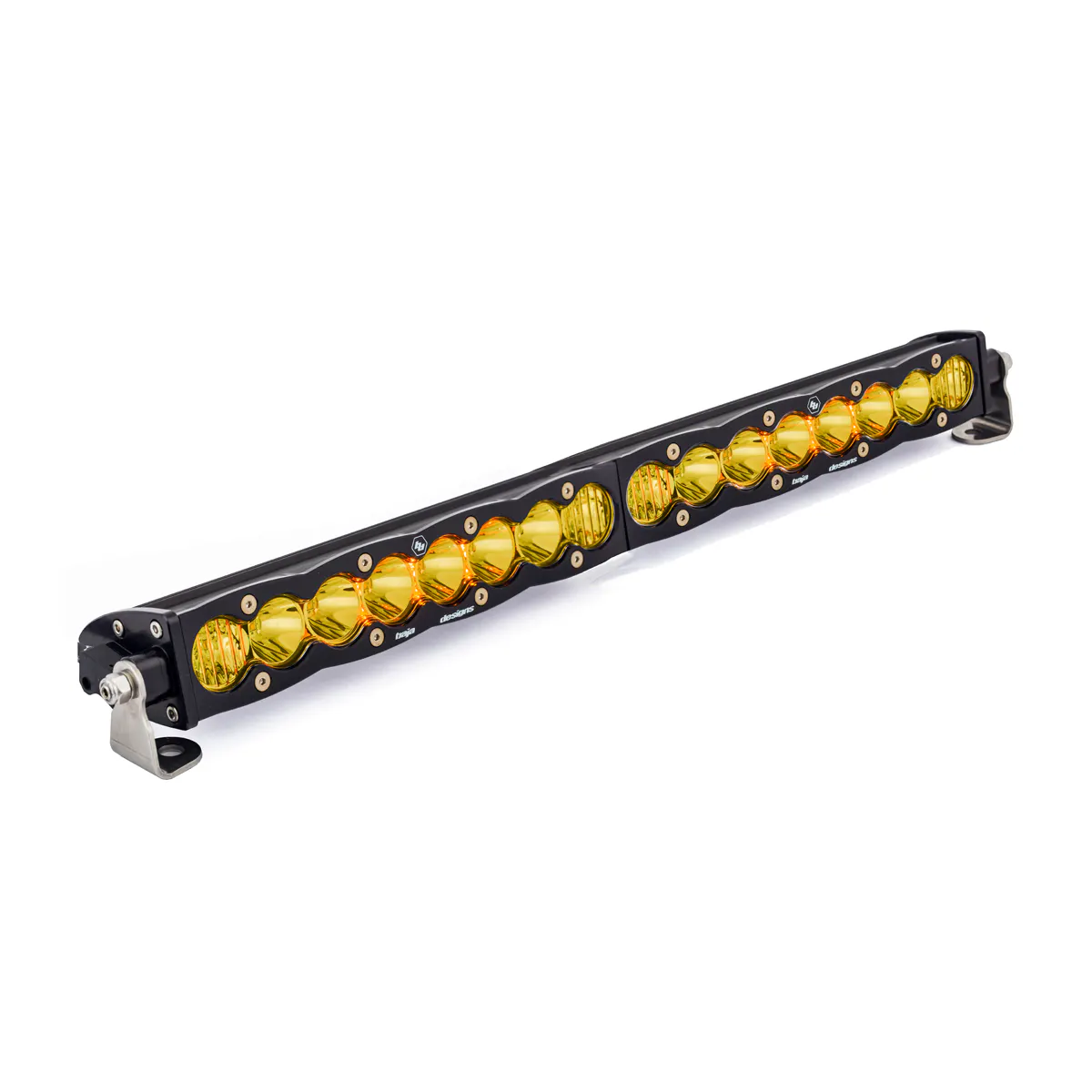

S8 Straight LED Light Bar (20 Inch; Driving/Combo; Baja Amber)

---

Baja Designs’ latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 12,700 lumens of pure power, low amp draw of 8.00 amps, and nearly 50,000 hours of LED life. The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design. The S8 is backed by our 30 Day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!

• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Only LED Driven At 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color

---

Information:

One Light Bar

---

Application Summary:

Universal

Attributes
Add-On	Accessories-708201-Rock Guard (Black), Accessories-708202-Light Cover (Amber), Accessories-708203-Light Cover (Clear), Accessories-708313-Lens Kit (Driving/Combo; Amber), Accessories-708303-Lens Kit (Driving/Combo; Clear), Accessories-708301-Lens Kit (Spot; Clear), Accessories-708314-Lens Kit (Wide Cornering; Amber), Accessories-708304-Lens Kit (Wide Cornering; Clear), Associated Products-618001-Cradle Mount Kit, Associated Products-660302-Anti Theft Hardware Kit – 1/4-20×1/2 Socket Pin Head Bolts, Associated Products-660303-Anti Theft Hardware Kit – 3/8 in. Tamperproof Nuts, Compatible Products-640177-Backlit Add-On, Compatible Products-613609-Harness/Splitter (55 Inch), Compatible Products-613608-Harness Splitter, Compatible Products-640163-Harness/Splitter (Hi Beam), Compatible Products-640094-Upfitter Harness, Compatible Products-640122-Wiring Harness (Mode Switch), Compatible Products-640115-Wiring Harness (On/Off)
Amperage Rating (A)	8.0
Average Rated Life (hr.)	49,930
Beam Pattern	Driving/Combo
Bezel Material	Billet Machined Aluminum
Brightness (Lumens)	12,700
California Proposition 65	WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Color	Baja Amber
Country of Origin (Primary)	US
Depth (in.)	3
Description	Driving/Combo; Amber
GTIN	00819314020815
Harmonized Tariff Code (Schedule B)	8512906000
Hazardous Material Code	N
Height (in.)	1.6
Housing Color	Black
Housing Material	Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Length (in.)	20
Lens Color	Amber
Lens Material	Hardcoated Polycarbonate
Life Cycle Status Code	Available to Order
Light Pattern	Driving/Combo
Light Quantity	1
Lighting Modes	Beam/Amber Backlit Feature
Lighting Quantity	16
Lighting Technology	Cree LED
Lighting Type	Forward Projecting
Mounting Hardware Description	Mounting Brackets
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
NAFTA Preference Criterion Code	B
Overvoltage Protection	Built-In
Patent No.	D780,964
Product Fitment	Universal
Product Information	One Light Bar
Product Type	S8 20 Inch LED Light Bar
SDR Required Flag	N
Size	20 Inch
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)
Universal or Specific	Universal
Wattage (W)	120
Weight (lbs.)	4.5
Wiring Harness Included	No
