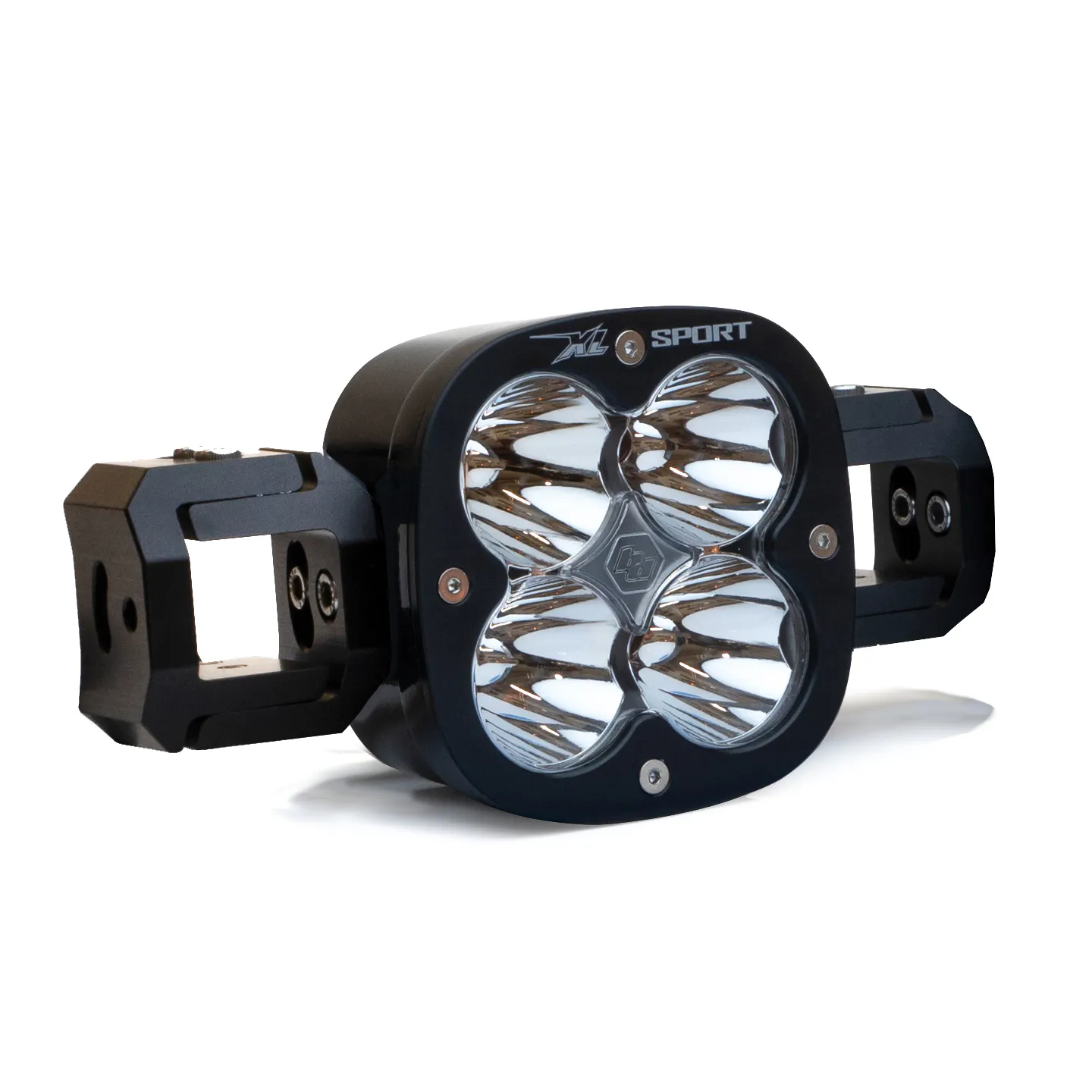

XL Linkable LED Light Bar Add-a-Light

---

If you’ve purchased an XL Linkable and you’re looking to add an additional XL Sport, this is the kit for you! It comes with the pre-crimpped wiring harness, and links to tie right into your main XL Linkable System.

• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Only LED Driven At 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color

---

Information:

One Light Pod

---

Application Summary:

Universal

Attributes
Add-On	Accessories-668003-Rock Guard (Black), Accessories-668004-Light Cover (Amber), Accessories-668005-Light Cover (Clear), Accessories-660115-Lens Kit (Driving/Combo; Amber), Accessories-660104-Lens Kit (Driving/Combo; Clear), Accessories-660106-Lens Kit (Spot; Clear), Accessories-660107-Lens Kit (Wide Cornering; Amber), Accessories-660105-Lens Kit (Wide Cornering; Clear), Compatible Products-640094-Upfitter Harness, Compatible Products-640094-Upfitter Harness
Amperage Rating (A)	2
Average Rated Life (hr.)	49,930
Beam Pattern	Spot
Bezel Material	Powder Coated Cast Aluminum
Brightness (Lumens)	3,150
California Proposition 65	WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Country of Origin (Primary)	US
Depth (in.)	2.8
Description	1XL Sport; Spot; Clear
GTIN	00810031741458
Harmonized Tariff Code (Schedule B)	8512906000
Hazardous Material Code	N
Height (in.)	4.43
Housing Color	Black
Housing Material	Hard Anodized and Powder Coated Cast Aluminum
Length (in.)	4.43
Lens Color	Clear
Lens Material	Hardcoated Polycarbonate
Life Cycle Status Code	Available to Order
Light Quantity	1
Lighting Modes	Beam
Lighting Quantity	4
Lighting Technology	LED
Lighting Type	Forward Projecting
Mounting Hardware Description	Links; Rock Guard
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
NAFTA Preference Criterion Code	B
Overvoltage Protection	Built-In
Product Fitment	Universal
Product Information	One Light Pod
Product Type	XL Linkable LED Add-a-Light
SDR Required Flag	N
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)
Universal or Specific	Universal
Wattage (W)	26
Weight (lbs.)	2.45
Wiring Harness Description	Pre-crimped
Wiring Harness Included	Yes
