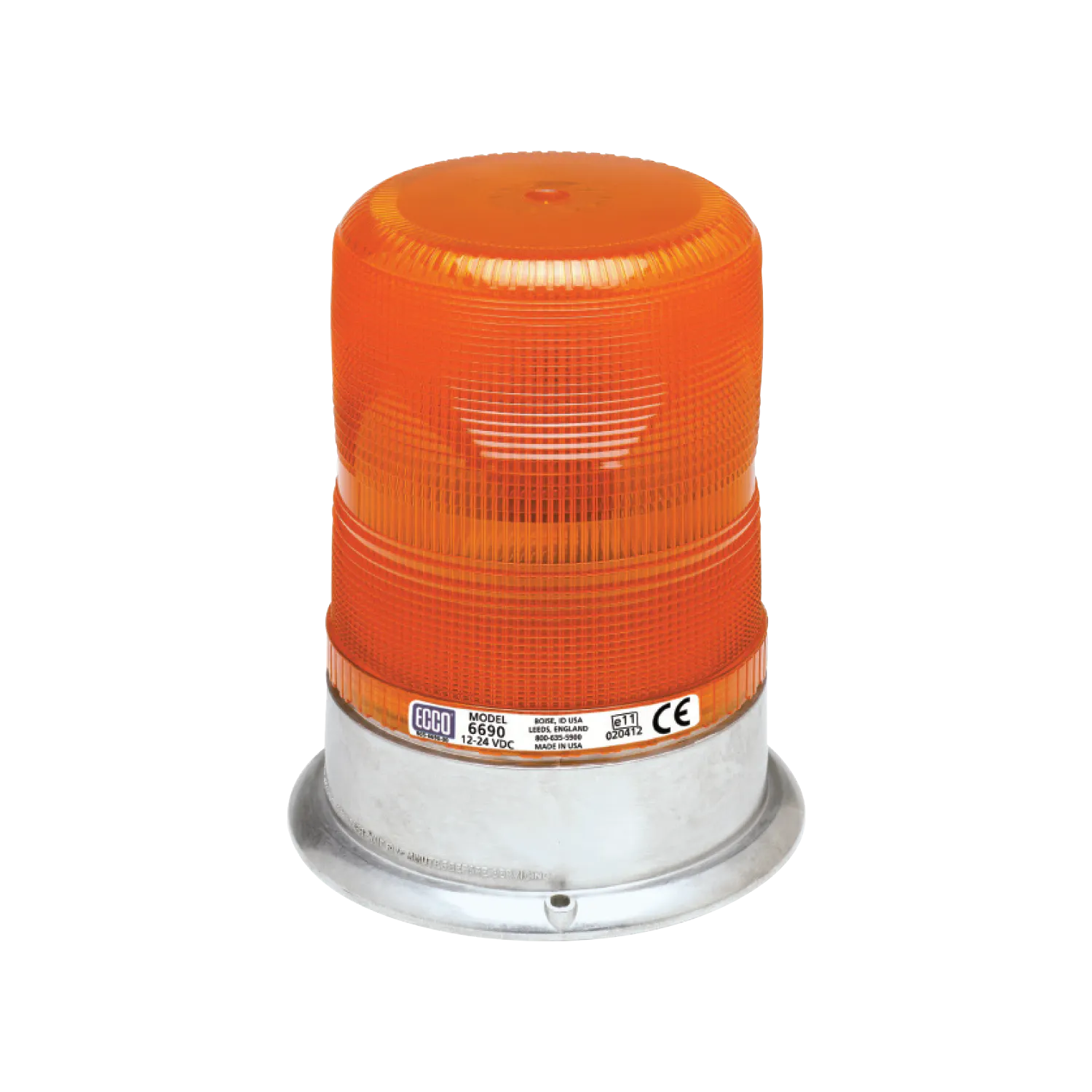

This 6690 Series Flashtube Strobe Beacon has a high profile, Amber illumination, a 3-bolt mount, a die-cast aluminum base, a polycarbonate lens, & snap-fit flashtube. It also has SAE J1318 Class II, CE, & R10 approvals.

---

6690 Series strobes feature a sturdy die-cast aluminum base and manual control of hi/lo light intensity and flash pattern selection (double or quad) via a circuit board-mounted microswitch.

• High profile; Flashtube (Snap-Fit); 3-Bolt (1" Pipe) Mount; 12-24V; Double/Quad; SAE J1318 Class II/CE/R10; 7.9"H, 6.5"W; 2.2 amps; 65 FPM; Die-cast aluminum base w/anti-corrosion coat resists vibration & dissipates heat; Polycarbonate lens

---

Information:

High profile; Flashtube; Strobe Beacon; Amber; Permanent 3-Bolt (1" Pipe) Mount; 12-24 V; Double/Quad; Approval Ratings: SAEJ1318 Class II, CE, R10; 7.9" height x 6.5" width; 2.2 amps; 65 FPM; Die-cast aluminum base is coated against corrosion and designed for vibration resistance and heat dissipation; Thread-on polycarbonate lens and snap-fit flashtube allows easy field service; Shock-resistant circuit board mounting incorporates seven support points; Circuit board is conformal-coated to prevent corrosion; Temperature Range:-22°F to +122°F (-30°C to +50°C; Warranty:Strobe = 2 years, Flashtube = 6 months; Parts & Accessories: PN: R6501FT Flashtube, PN: R6050LA/R6070LA Low-Medium/High Profile Amber Lenses, PN: R6050LB/R6070LB Low-Medium/High Profile Blue Lenses, PN: R6050LC/R6070LC Low-Medium/High Profile Clear Lenses, PN: R6050LG/R6070LG Low-Medium/High Profile Green Lenses, PN: R6050LR/R6070LR Low-Medium/High Profile Red Lenses.

Attributes
Category	Automotive Lighting
Emission Code	Legal US
Hazardous Material Code	N
Life Cycle Status Code	Available to Order
Series	Strobe Beacons
Subcategory	Halogen Auxiliary and Off-Road Lights
