Description

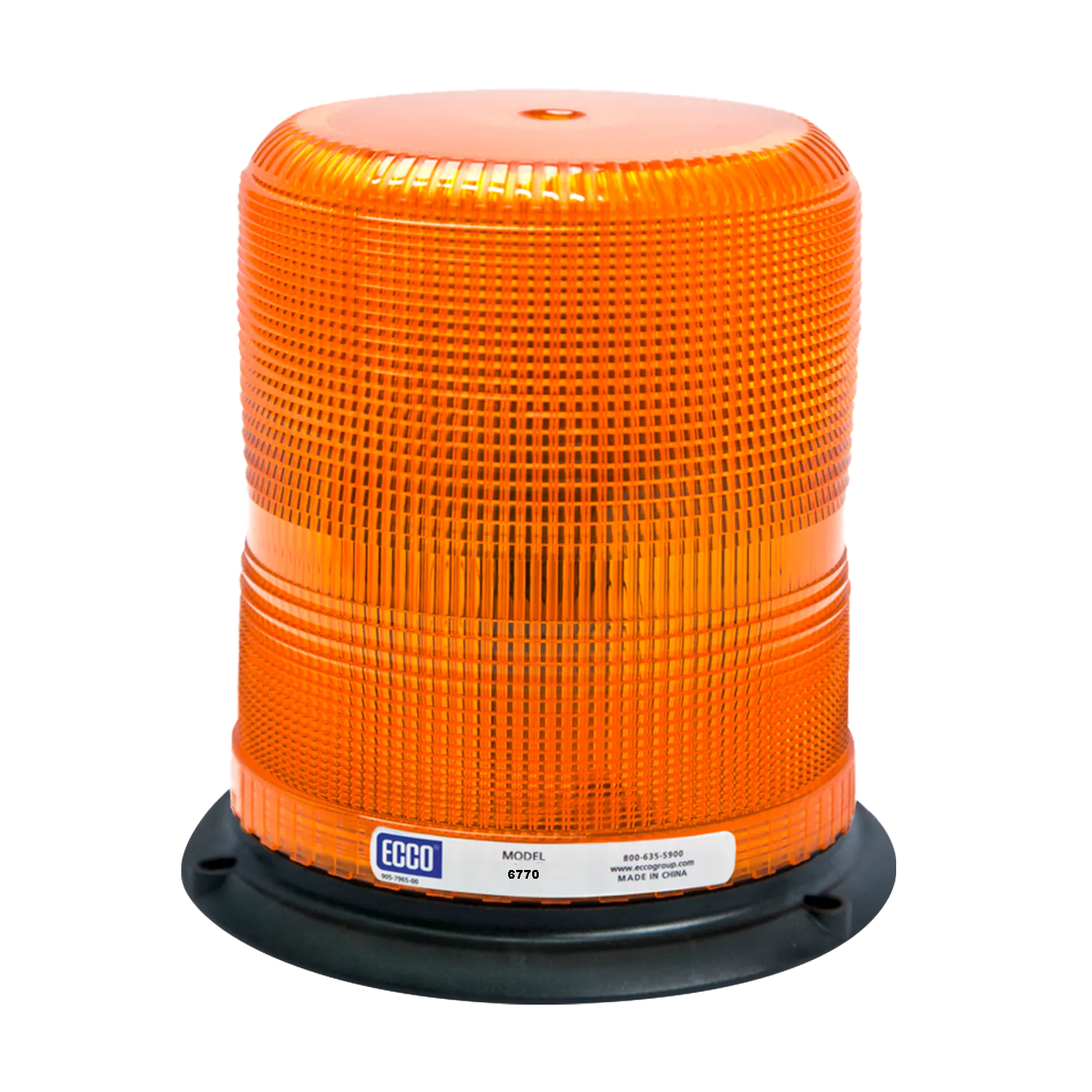

This 6770 Series Flashtube Strobe Beacon has a medium profile, Amber illumination, a 3-bolt mount, i.beam flash technology, a polypropylene base, & a polycarbonate lens. It also has SAE J1318 Class II, CE, R10, & IP66 approvals.
The 6770 Series, medium-profile strobe beacons are built to withstand the toughest applications, severe vibration, pressure washing, and steam cleaning. Power supplies are completely encapsulated in epoxy resin and housed in a die-cast aluminum base, providing superior protection against moisture, dust, and vibration. This series also features ECCO’s patented i.beam diagnostic technology that monitors circuit board and flashtube operation.
The 6770 Series, medium-profile strobe beacons are built to withstand the toughest applications, severe vibration, pressure washing, and steam cleaning. Power supplies are completely encapsulated in epoxy resin and housed in a die-cast aluminum base, providing superior protection against moisture, dust, and vibration. This series also features ECCO’s patented i.beam diagnostic technology that monitors circuit board and flashtube operation.
- Medium-Profile; Flashtube; i.beam; Amber; 3-Bolt (1" Pipe) Mount; 12-24V; Double/Quad Flash Pattern; Ratings: SAE J1318 Class II, CE, R10, IP66; 6.7"H, 6.5"W; Epoxy Resin-Enclosed Circuit Board; Aluminum base; Polycarbonate lens.
Information:
6770 Series; Flashtube; Medium-Profile; Strobe Beacon; Amber; 3-Bolt (1" Pipe) Mount; 12-24V; Double/Quad Flash Pattern; I. Beam flash technology; Approvals: SAE J1318 Class II, CE, R10, & IP66; 6.7" height x 6.5" width; Circuit board is epoxy resin-encapsulated for protection against moisture, dust, and vibration; Aluminum base; Thread-on polycarbonate lens and snap-fit flashtube allow easy field service; Consistent operation during voltage and temperature changes; Temperature Range: -22°F to +122°F (-30°C to +50°C); Warranty: Strobe = 2 years, Flashtube = 6 months; Parts & Accessories: PN: R6501FT Flashtube, PN: R6050LA Amber Low-Profile Lens, PN: R6070LA Amber Medium/High-Profile Lens, PN: R6050LB Blue Low-Profile Lens, PN: R6070LB Blue Medium/High-Profile Lens, R6050LC Clear Low-Profile Lens, PN: R6070LC Clear Medium/High-Profile Lens, PN: R6050LG Green Low-Profile Lens, PN: R6070LG Green Medium/High-Profile Lens, PN: R6050LR Red Low-Profile Lens, PN: R6070LR Red Medium/High-Profile Lens.| Attributes | |
| Category | Automotive Lighting |
| Emission Code | Legal US |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Series | Strobe Beacons |
| Subcategory | Halogen Auxiliary and Off-Road Lights |
