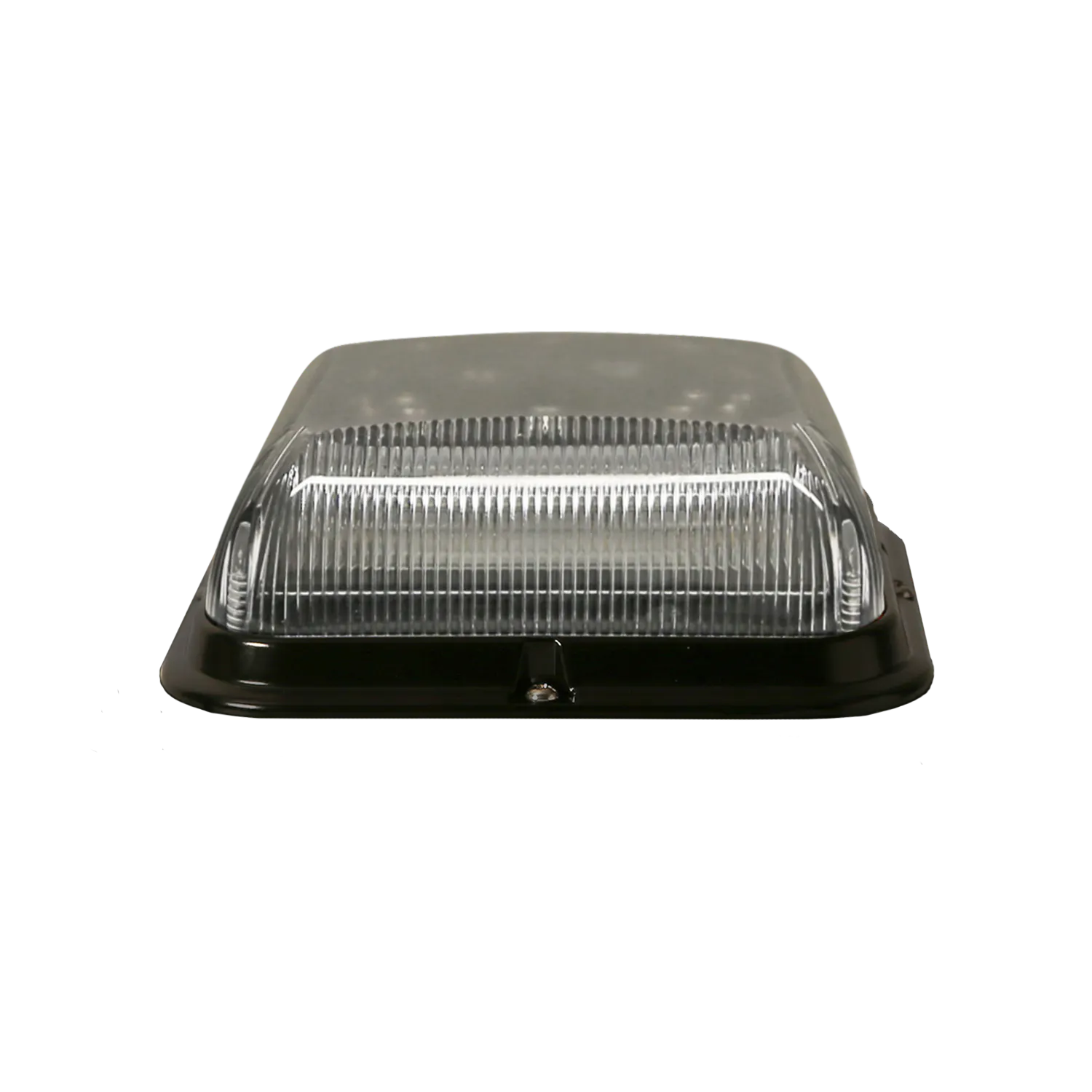

EB7180 LED beacons offer SAE Class I light output and a choice of 8 flash patterns including simulated rotate mode with synchronization capability. Combined with a long, maintenance free service life and low amp draw, this beacon is a high performance, cost effective choice for many applications. Easily replace strobe or rotating beacons with the latest technology so no ongoing maintenance is required.

• LED Beacon; Clear Lens; Amber Illumination; 4-Bolt Flange Mount; 12-24V; 6.2 amps; 8 Flash Pattern; Approval Ratings: SAE J845 Class I, California Title 13, R10, IP55, AMECA, RoHS;2.3" Height x 6.5" Width; Compact, low profile beacon.

---

Information:

LED Beacon; Clear Lens; Amber Illumination; 4-Bolt Flange Mount; 12-24V; 6.2 amps; Low Profile; Square, reinforced polypropylene base; 8 Flash Pattern; Approval Ratings: SAE J845 Class I, California Title 13, R10, IP55, AMECA, RoHS;2.3" Height x 6.5" Width; Compact, low profile beacon; 8 flash patterns: Single (125 FPM), Double (125 FPM), Quad (125 FPM), Rotate (125 FPM), Single (75 FPM), Double (75 FPM), Quad (75 FPM), Rotate (75 FPM); Multiple units can be synchronized; Cigarette plug with on/off and flash pattern switch (vacuum magnet only); Temperature Range:-22°F to +122°F (-30°C to +50°C).

Attributes
Category	Automotive Lighting
Emission Code	Legal US
Hazardous Material Code	N
Life Cycle Status Code	Available to Order
Series	LED Beacons
Subcategory	LED Auxiliary Lights
Warranty Time	36
