Description

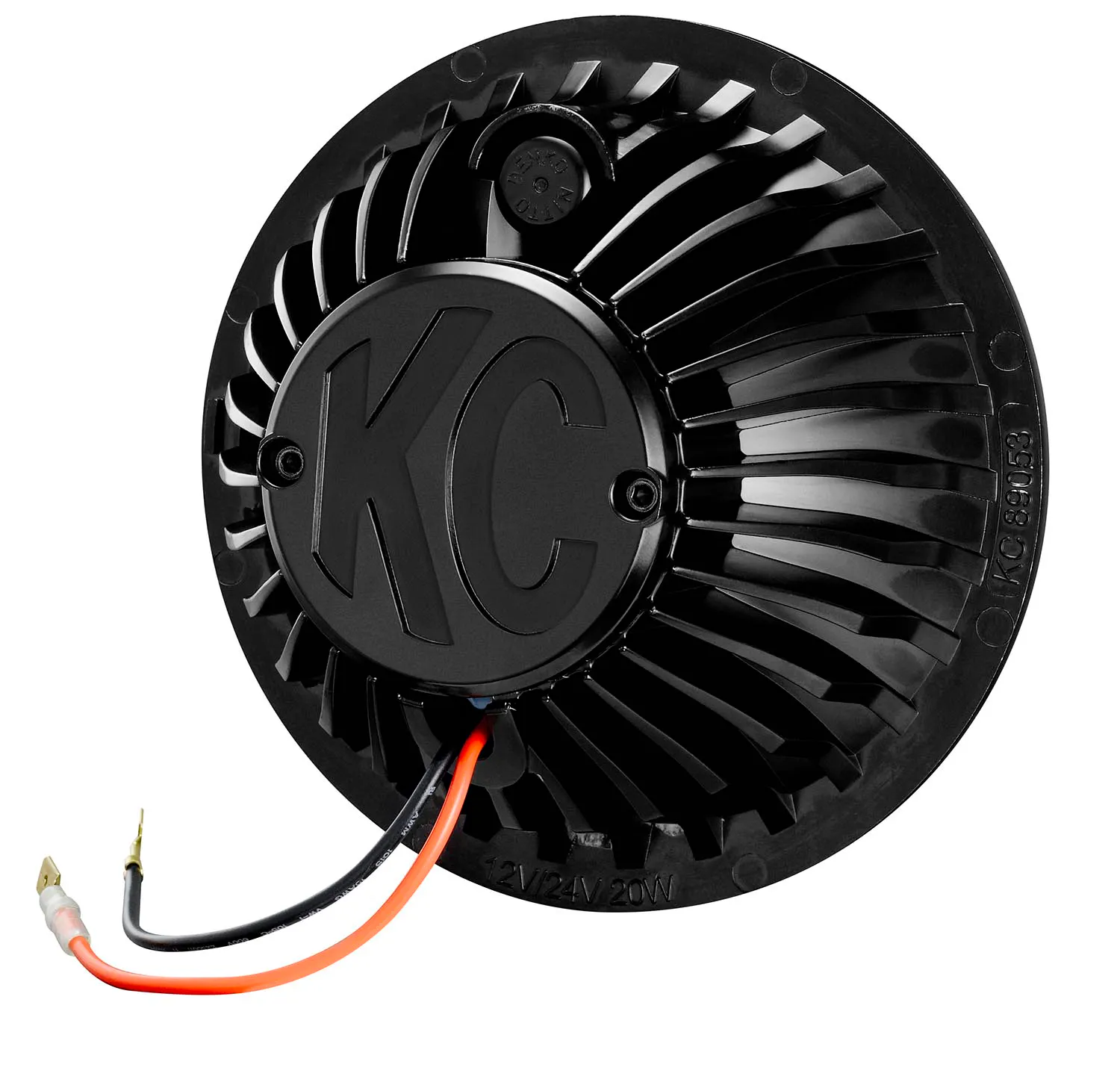

KC HiLiTES 6" Gravity LED Inserts allows you to upgrade existing Halogen 6" Daylighter and Pro-Sport lights. Features efficient CREE LEDs in a spot beam pattern for focused width and distance. System includes (2) 6" 20w Gravity LED inserts.
With an IP68 rated sealed aluminum reflector housing and durable polycarbonate lens to create a self contained LED light for maximum reliability and durability.
With an IP68 rated sealed aluminum reflector housing and durable polycarbonate lens to create a self contained LED light for maximum reliability and durability.
- Improved Visibility And Safety
- Better Performance
- 5000K LED Color Temperature
- Patented Gravity Reflective Diode Technology
- Yields More Controlled And Farther Reaching Light Beams
- High Grade Aluminum Housing
- IP 68 Rated
- Simple Plug And Play Swap Out Conversion
Information:
FEATURES-2 x 20W Gravity LED G6 optical inserts-Aluminum Housing-Hard Coated Polycarbonate Lens-Spot Beam Pattern LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: Spot-2;300 lm-Compliance: Driving Beam meets SAE J581/ECE-R112 Street Legal-Lux @10 Meters: Spot-2;150 lx-Candela: Spot-215;000 cd-Beam Distance (Meters): Spot-972m SPECIFICATIONS(PER LIGHT)-Wattage: 20W-LED Source: CREE XPL HD LED-Amp Draw: 1.67A-Voltage: 9V-32V-IP Rating: IP68-Product Dimensions: W-5.68in. x H-5.66in. x D-3.32in. Parts Included in G6 Pair Packs-(2) 6in. Gravity G6 Optical Inserts-Wiring Harness w/2-Pin weather proof connectors-30A LED Switch w/Panel GRAVITY EXTREME OUTPUT AND EFFICIENCYGravity G6 LED optical inserts deliver an incredible 2;150 lx @ 10m and Spot Beam distance of 972 meters. Our patented GRD (Gravity Reflective Diode) system aims the LEDs into the precision reflectors; capturing all the light and projecting it forward. AVAILABLE BEAM PATTERN AND ADVANTAGESSpot Beam-Provides focused bright light for maximum forward distance and high speed visibility.UPGRADE YOUR HALOGENS TO LEDKC s Gravity G6 LED optical inserts allow you to upgrade older KC 6in. Halogen Daylighter and Pro-Sport housings; as well custom 6in. openings with the latest LED technology.STRENGTH/DURABILITYWith an IP68 rated sealed aluminum reflector housing and durable polycarbonate lens to create a self contained LED light for maximum reliability and durability.| Attributes | |
| AMP Draw | 3.3A, 3.3A |
| ASIN | B00M62378C |
| Application | Automotive |
| Beam Distance (Meters) | 972m, 972m |
| Beam Pattern | Spot, Spot |
| Beam Style | Spot |
| Bulb Type | LED |
| California Proposition 65 | No |
| Candela | 215,000 Cd, 215,000 Cd |
| Country of Origin (Primary) | TW |
| DOT Compliant | No, No |
| GTIN | 00084709421342 |
| Harmonized Tariff Code (Schedule B) | 8512202040 |
| Hazardous Material Code | N |
| Housing Color | Black |
| Housing Shape | Square |
| Life Cycle Status Code | Available to Order |
| Light Color | White |
| Lumens | 2300, 2300 |
| Lux | 2150, 2150 |
| NAFTA Preference Criterion Code | B |
| Quantity Sold | 2 |
| SAE/ECE | No |
| SAE/ECE Compliant | No |
| SDR Required Flag | N |
| Voltage | 9V-32V, 9V-32V |
| Warranty Note | This item has exceptions to the warranty period. Please visit kchilites.com/warranty for details and exceptions. |
| Warranty Time | 276 |
| Wattage | 40W, 40W |
| Wattage Per Light | 20W, 20W |
