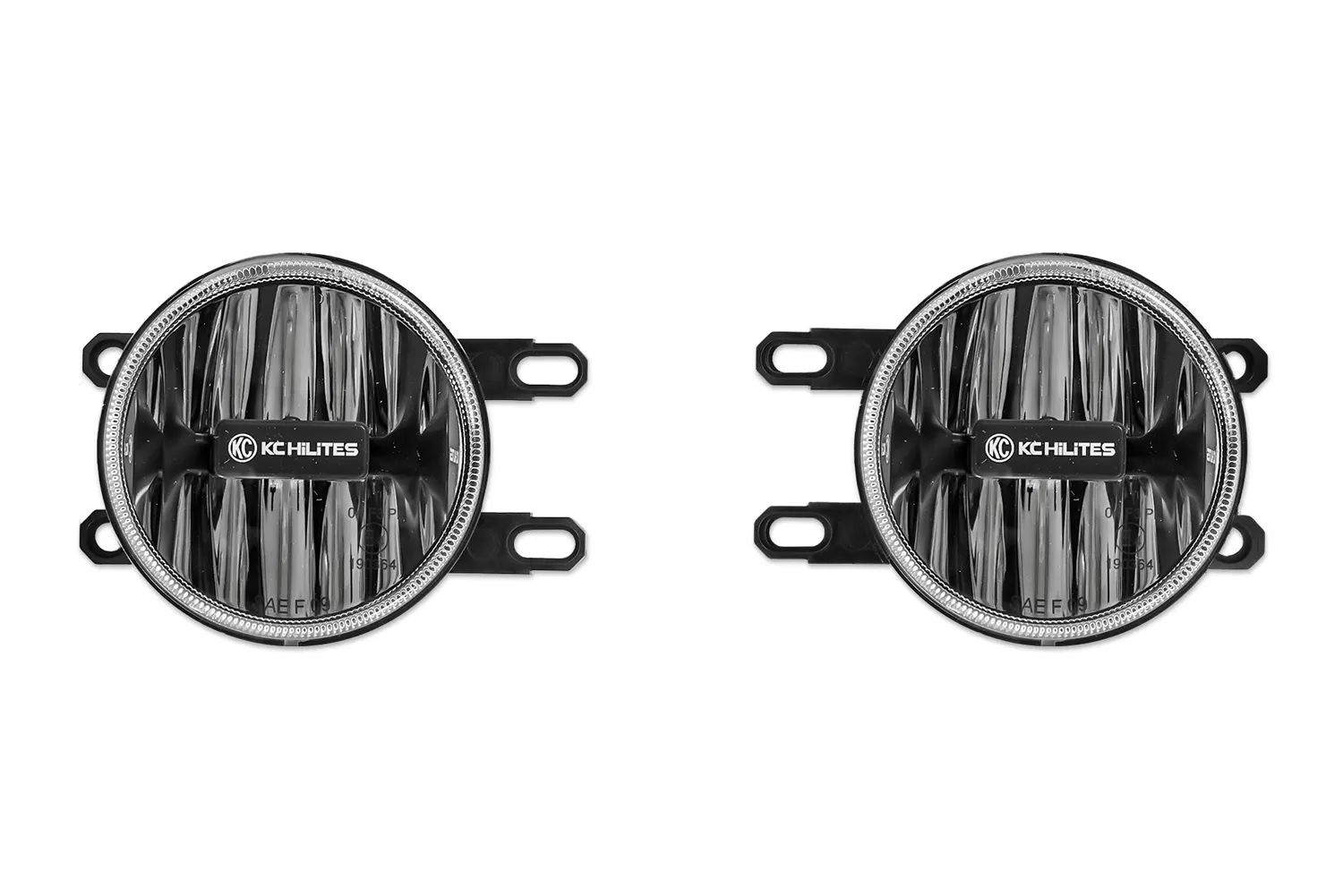

Fog Light Bracket/LED upgrade allows mounting of KC Gravity G4 LED fog lights to Tacoma’s OEM fog lamp locations. Brackets gives your G4 fog lights a clean, factory installed look without having to drill or cut your bumper.

---

KC’s G4 LEDs fits various 06-22 Toyota/Lexus/ models, mounting to OEM bolt holes to deliver powerful light output. The 4 in Gravity(R) LED Fog Lights are powered by KC’s patented Gravity(R) Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx at 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision-designed reflectors to capture all the light and project it forward. Using high-quality electroplated aluminum housing and Polycarbonate lens in a self-contained housing, impermeable to dust and moisture.

• Street Legal Fog Beam Pattern
• Lightweight Magnesium Housing for Maximum Heat Dissipation
• UV Treated Shatter Resistant Polycarbonate Lens

---

Information:

FEATURES-2 x 10W 4 Gravity LED Fog Lights w/ Brackets-Lightweight Magnesium Housing for Maximum Heat Dissipation-UV Treated Shatter Proof Polycarbonate Lens-Street Legal Fog Beam PatternLIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 866 lm-Compliance: SAE J583 & ECE-R19-Lux @ 10 Meters: 150 lx-Candela: 15,000 cd-Beam Distance (Meters): 245mSPECIFICATIONS(PER LIGHT)-Wattage: 10W-LED Source: CREE XP-G R4-Color: 5000K-Amp Draw: .74A-Voltage: 9V-32V-IP Rating: IP69-Dimensions: W – 3.94x H – 3.94 x D – 2.97Parts Included-(2) 10W 4Gravity G4 LED Fog lights and Brackets for 12-16 Toyota Tacoma-H11 Wiring Harness w/ 2-Pin weather-proof connectors-30A LED Switch w/PanelTOYOTA TACOMA OE MOUNTINGThe Toyota Tacoma is arguably one of the toughest compact pickups on the road today, offering versatile performance and unrivaled durability, much like our Gravity G4 LEDs whichpair perfectly with your Tacoma with OEM factory bolt design for easy mounting.GravityEXTREME OUTPUT AND EFFICIENCYThe 4 Gravity LED Fog Lights are powered by KC’s patented Gravity Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision designed reflectors to capture all the light and project it forward.STREET LEGAL FOG BEAM PATTERNFog Beam- Provides a low, wide angle light pattern that increases visibility in conditions like dust, fog, snow and rain.STRENGTH & DURABILITY Using high quality electroplated aluminum housing and Polycarbonate lens in a self contained housing, impermeable to dust and moisture.

---

Application Summary:

Year	Make/Model
2010-2024	Toyota 4Runner
2006-2012	Toyota RAV4
2012-2023	Toyota Tacoma
2014-2021	Toyota Tundra

Attributes
AMP Draw	.74A, .74A
Add-On	N/A, N/A
Beam Distance (Meters)	245m, 245m
Beam Pattern	Fog, Fog
California Proposition 65	No
Candela	150,000 cd, 150,000 Cd
Color	5000K
Color Temperature	5000K
Compliance	SAE J583 ECE-R19, SAE J583 ECE-R19
Country of Origin (Primary)	TW
GTIN	00084709005009
Harmonized Tariff Code (Schedule B)	8512202000
Hazardous Material Code	N
IP Rating	IP68, IP68
LED Source	CREE XP-G R4, CREE XP-G R4
Life Cycle Status Code	Available to Order
Light Temp	5000K
Lumens	866, 866
Lux	150, 150
Lux at 10 Meters	150 lx
Lux at 10 Meters	150 lx, 150 lx
NAFTA Preference Criterion Code	B
Parts Included	(2) 10W 4 in Gravity(R) G4 LED Fog lights and Brackets for 12-22 Toyota Tacoma, 2 x 10W 4 in Gravity LED Fog Lights, H11 Wiring Harness w/ 2-Pin weatherproof connectors, (2) 10W 4 in Gravity(R) G4 LED Fog lights and Brackets for 12-22 Toyota Tacoma, 2 x 10W 4 in Gravity LED Fog Lights, H11 Wiring Harness w/ 2-Pin weatherproof connectors
Product Dimensions	W 3.94 in x H 3.94 in x D 2.97 in, W 3.94 in x H 3.94 in x D 2.97 in
Raw Lumens	866 lm, 866 lm
SDR Required Flag	N
Voltage	9V-32V, 9V-32V
Warranty Time	5
Wattage	10W, 10W
