Dramatically improve your Can-Am Maverick’s visibility and lighting performance at night with Gravity LED Pro6 6-Light LED light bar.

---

Patented Gravity(R) LED G6 optical inserts provide exceptional efficiency and light output. 20W, G6 optics are available in Spot, Driving, and Wide-40 patterns. The patented Infinity Ring(TM) system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape, and a radius or straight setting between each ring. The Pro6 LED light bar uses high-strength aluminum end mounts that work specifically with Can-Am Cage mount brackets and KC’s Gravity(R) LED Pro6 6-Light Combo LED Light Bar system which includes all necessary hardware and installation instructions.

• Combo Wide-40 and Driving Beam Patterns
• Deluxe Plug-N-Play Wiring Harness W/ 30A LED Switch
• Extremely high output with very low amperage draw
• Powered by Gravity(R) LED G6 optical inserts efficient, powerful, patented

---

Information:

Can-Am Specific Mounting Brackets for 2014-2016 Can-Am Maverick(Does Not Fit X3 Models)

---

Application Summary:

Year	Make/Model
2013-2014	Can-Am Commander 1000
2013-2018	Can-Am Commander 1000 DPS
2017-2018	Can-Am Commander 1000 Limited
2013-2016	Can-Am Commander 1000 LTD
2016-2018	Can-Am Commander 1000 Mossy Oak Hunting Edition
2013	Can-Am Commander 1000 X
2018	Can-Am Commander 1000R DPS
2013-2016	Can-Am Maverick 1000R
2016-2018	Can-Am Maverick 1000R DPS
2017-2018	Can-Am Maverick 1000R X mr
2016-2018	Can-Am Maverick 1000R XC
2014-2015	Can-Am Maverick Max 1000R

Attributes
AMP Draw	9.78A, 9.78A
Add-On	N/A, N/A
Beam Distance (Meters)	1,435m, 1,435m
Beam Pattern	Combo, Combo
California Proposition 65	No
Candela	515,000 cd, 515,000 Cd
Color Temperature	5000K
Country of Origin (Primary)	TW
GTIN	00084709913168
Harmonized Tariff Code (Schedule B)	8512202000
Hazardous Material Code	N
IP Rating	IP68, IP68
Life Cycle Status Code	Available to Order
Light Temp	5000K
Lumens	13800, 13800
Lux	5150, 5150
Lux at 10 Meters	5,150 lx
Lux at 10 Meters	5,150 lx, 5,150 lx
NAFTA Preference Criterion Code	B
Overall Length	39.000 in.
Overall Length (in.)	39.000 in.

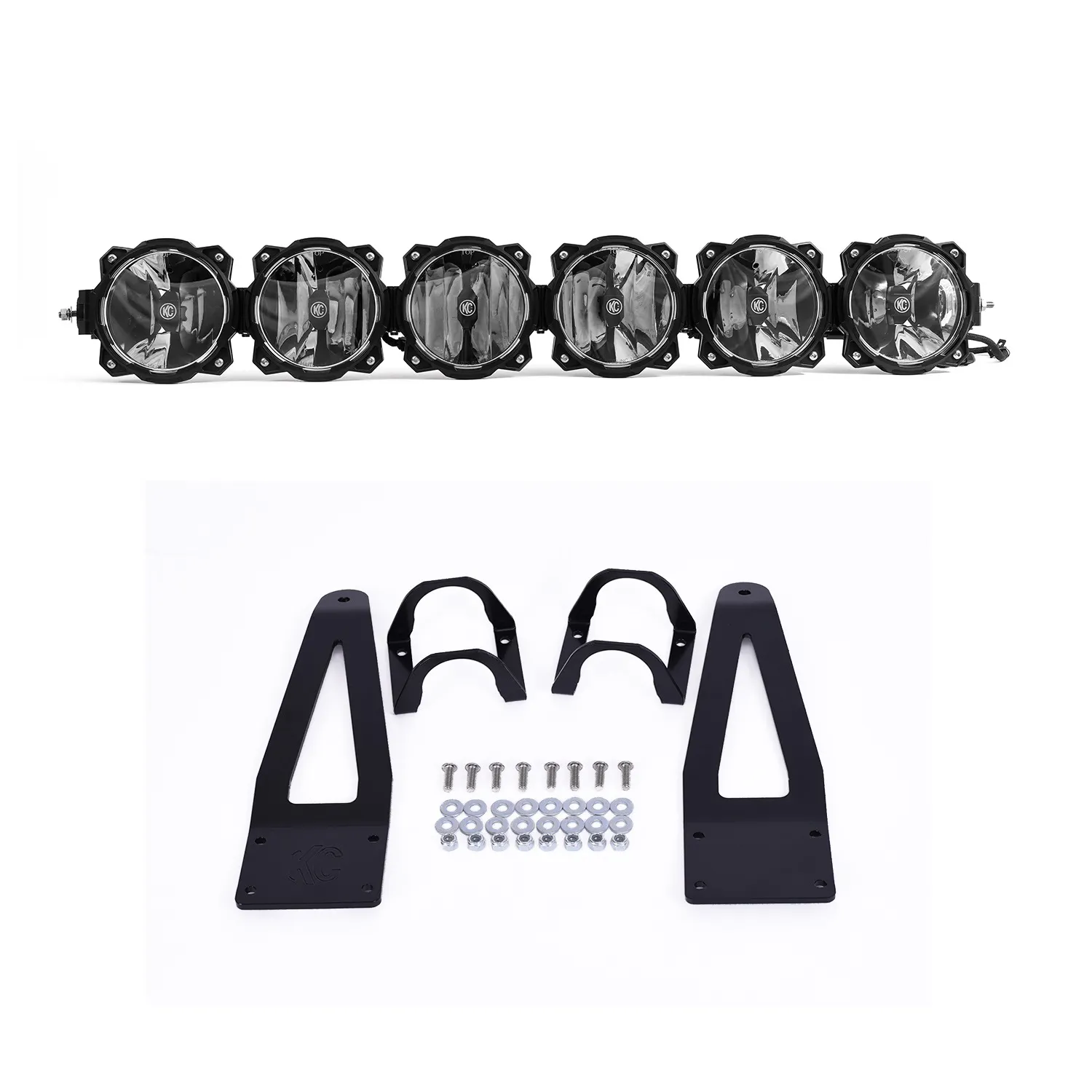

Parts Included	(1) 39 in Pro6 LED Light Bar, (2) Overhead Cage Light Bar Brackets for CanAm Maverick UTVs, Deluxe Plug-n-Play Wiring Harness W/LED Switch, (1) 39 in Pro6 LED Light Bar, (2) Overhead Cage Light Bar Brackets for CanAm Maverick UTVs, Deluxe Plug-n-Play Wiring Harness W/LED Switch
Product Dimensions	H 6.06 in x D 3.33 in x W 39.125 in, H 6.06 in x D 3.33 in x W 39.125 in
Raw Lumens	13,800 lm, 13,800 lm
SDR Required Flag	N
Voltage	9-32V, 9-32V
Warranty Note	This item has exceptions to the warranty period. Please visit kchilites.com/warranty for details and exceptions.
Warranty Time	23
Wattage	120W, 120W
