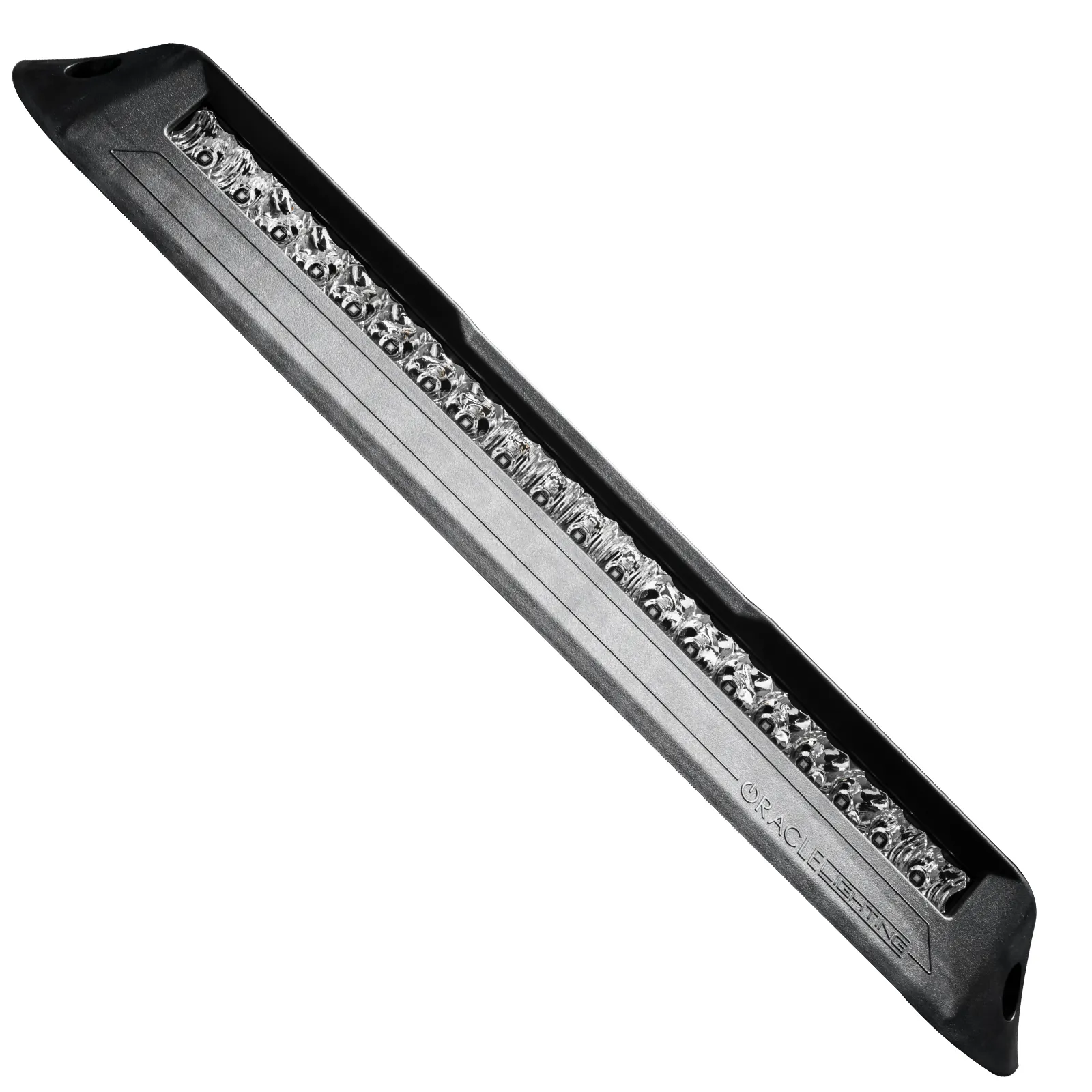

ORACLE Lighting 2019-2024 RAM Rebel/TRX Front Bumper Flush LED Light Bar System

---

This new auxiliary light design from ORACLE Lighting incorporates both TIR (Total Internal Reflection) and LED Reflector Facing Technology to create a high-quality light output with a precision beam pattern. By combining both optic technologies this light provides an average 30 degree beam pattern and projects up to nearly 500M overall distance. The integrated LED marker lights feature both White and Amber LEDs which can be utilized for parking lights, DRL, and/or Turn Signals.

• Housing: Polycarbonate
• Lens: Optically Clear Lexan
• Watts: 100W (20x 5W LED)

---

Information:

5500K – Clear Lens

---

Application Summary:

Year	Make/Model
2019-2024	Ram 1500

Attributes
AMP Draw	7.5A at 12VDC, 7.5A at 12VDC
Add-On	N/A, N/A
California Proposition 65	WARNING: Cancer – www.P65Warnings.ca.gov
Country of Origin (Primary)	US
GTIN	00810030395584
Harmonized Tariff Code (Schedule B)	8512200000
Hazardous Material Code	N
Housing	Polycarbonate, Polycarbonate
Kelvin Temperature	5500K, 5500K
LED	Osram CRDP LED Chip, Osram CRDP LED Chip
LED Life	50,000+ Hours, 50,000+ Hours
Lens	Optically Clear Lexan, Optically Clear Lexan
Life Cycle Status Code	Available to Order
Lumen Output	12000, 12000
NAFTA Preference Criterion Code	B
Optics	Mixed Spot/ Flood, Mixed Spot/ Flood
SDR Required Flag	N
Voltage	9V-36V DC, 9V-36V DC
Warranty Time	1
Waterproof Rating	IP69K, IP69K
Watts	100W (20x 5W LED), 100W (20x 5W LED)
